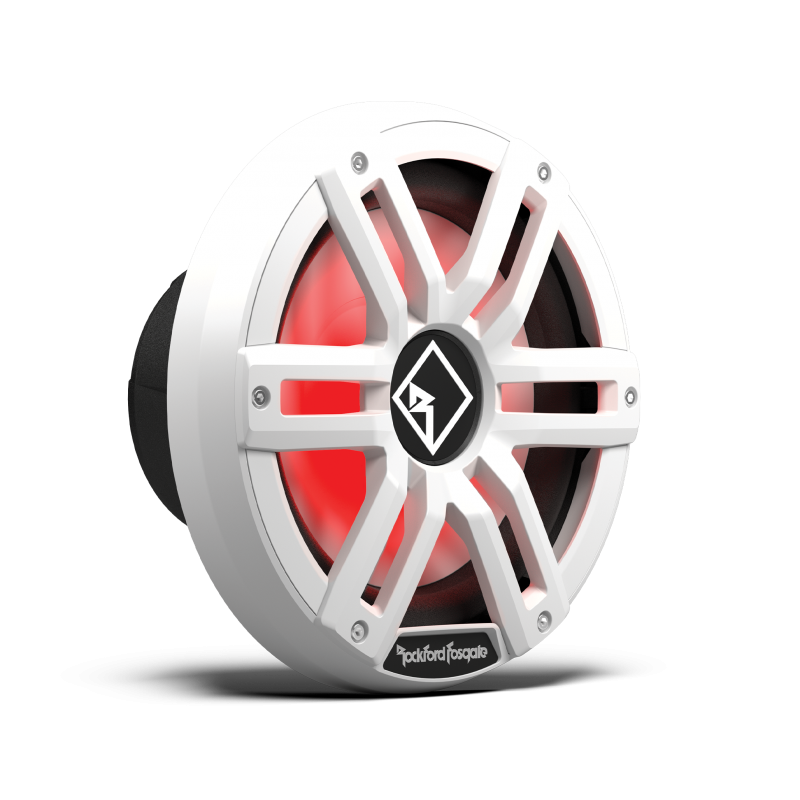

Rockford Fosgate M2 10" DVC 4Ω Color Optix Sealed Marine Subwoofer: White Gen-2 - M2D4-10S-G2
M2D4-10S-G2
The second generation M2 10-inch subwoofers create an unmatched audio experience, with class-leading output, complete on-water lighting control and grille customization. This subwoofer is optimized for small Sealed Enclosures when there is very little space for an enclosure. Sold individually (1 each).
Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller (sold separately) and App.
Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.
Grille Customization: Multiple grille options provides a customized look by using either the stainless-steel grille or the “sport” grille inserts, allowing you to dial in your personalized-on water experience.
True Marine Ecosystem: Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.
Color Optix™: Requires PMX-RGB controller and RF Connect™ App
Overview
NEXT GEN PERFORMANCE
The redesigned M2 Element Ready™ subwoofers bring unmatched reliability and deep, powerful bass, with enhanced responsiveness and superior thermal management. Built to handle any adventure, they were engineered to endure the toughest conditions.
The subwoofers are designed to pair with the Rockford Fosgate RF Connect App and Color Optix™ controller (PMX-RGB required) through its Deutsch™ and Amphenol™ connectors integrated into the basket. To streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2Ω and 8Ω as easy as flipping a switch.
Since this subwoofer is designed for small sealed enclosures, follow the recommended enclosure design to optimize its mechanical power handling.

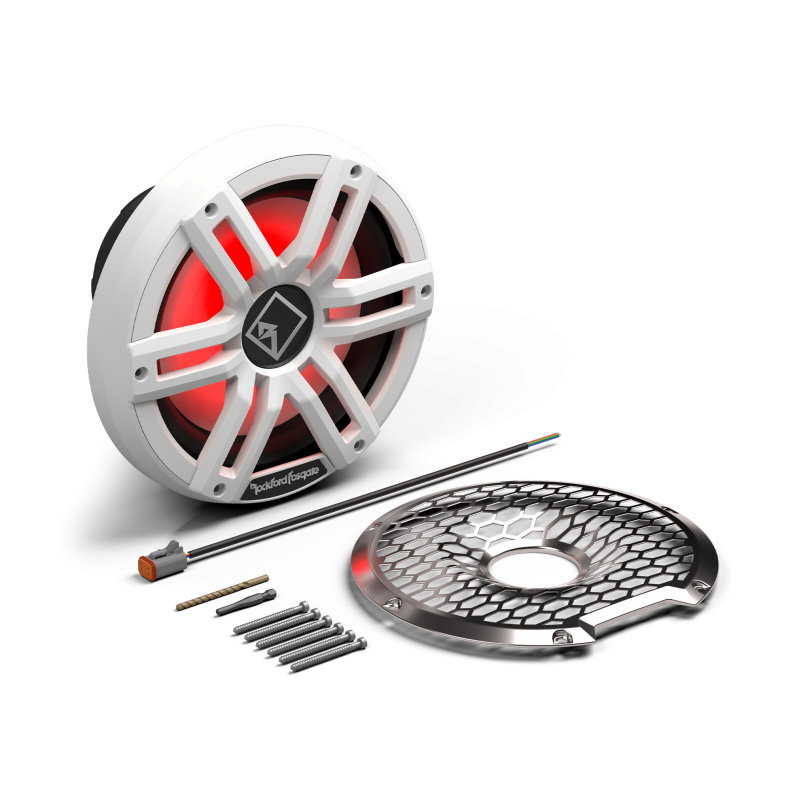

The Marine 10” Subwoofer Includes:
- (1) Sport grille insert

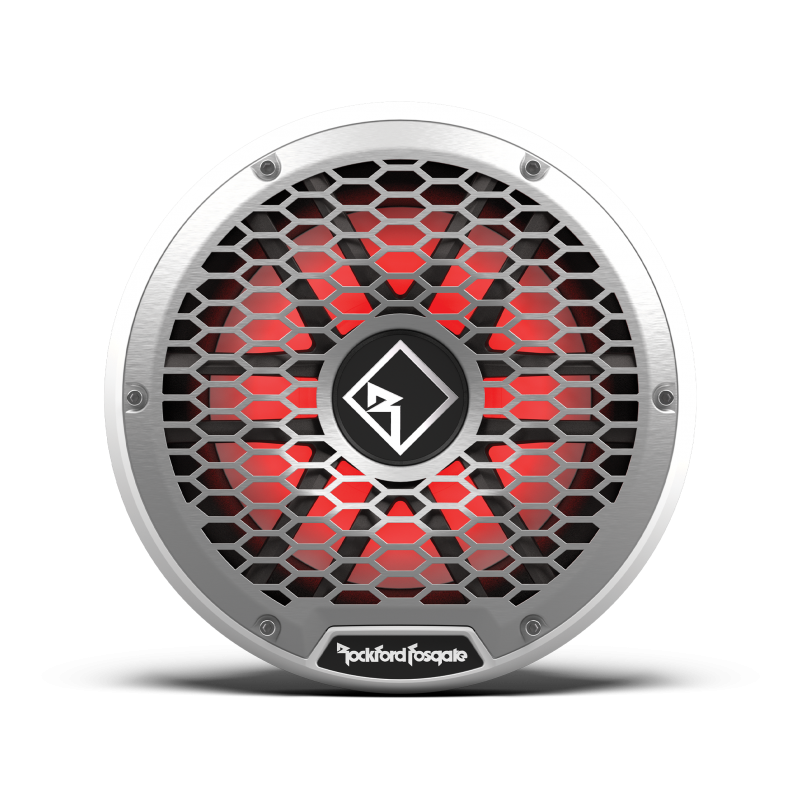

- (1) Stainless steel grille insert
- (1) Deutsch speaker pigtail
- (1) Deutsch ColorOptix™ pigtail (to hard-wire one color)
FEATURES AT A GLANCE
- Optimized for small sealed enclosures when there is very little space for an enclosure
- COMSOL Multiphysics simulation software used to optimized suspension & motor assembly
- New vented T-yoke improves power and performance without bottoming
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Chemically bonded co-molded surround for a stronger attachment
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Vented motor design with water-repelling nano coated mesh screen
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Deutsch™ connector front/rear silicone seal protects against water ingress
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Fully insulated silicone tinsel leads
- 100% UV Stable Centrex plastic grill
- Optically clear UV stable RGB Lighting Encapsulation
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)

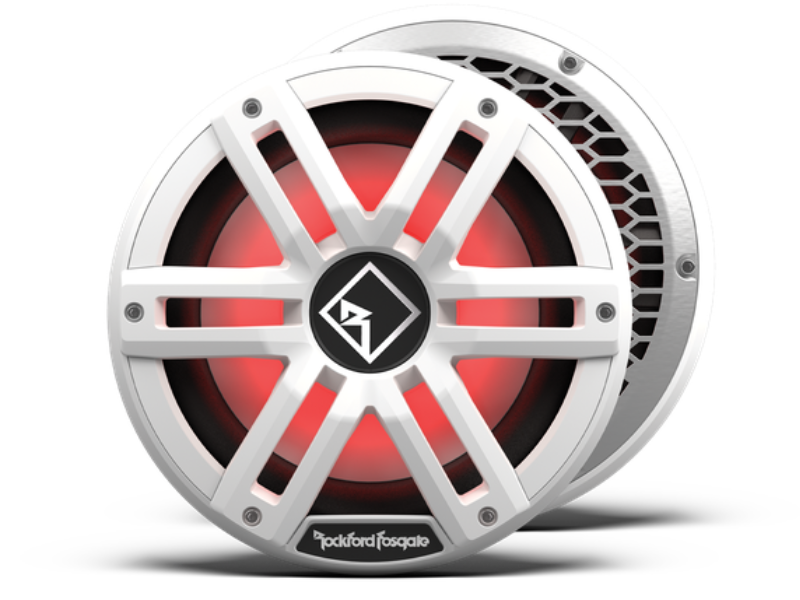

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- 2-Year Warranty
M2 G2 Subwoofer Launch
Introducing the next generation of M2 Subwoofers!
M2 G2 Subwoofer Overview
Introducing the next generation of M2 Subwoofers – The redesigned M2 Element Ready™ subwoofers bring unmatched reliability and deep, powerful bass, with enhanced responsiveness and superior thermal management. Built to handle any adventure, they were engineered to endure the toughest conditions. Let’s dive into the details.
Technologies
NCDI Surround
This improved surround uses a supercritical synthetic organic polymer created through an NDCI (Nano-Cell Direct Injection) molding process. This high efficiency design offers low distortion with low-end bass extension in a surround technology resistant to dry rot.
Aluminum Spider Spacer
The spider spacer helps dissipate thermal build-up across the suspension by using heat-sinking aluminum material on the outside of the spider.

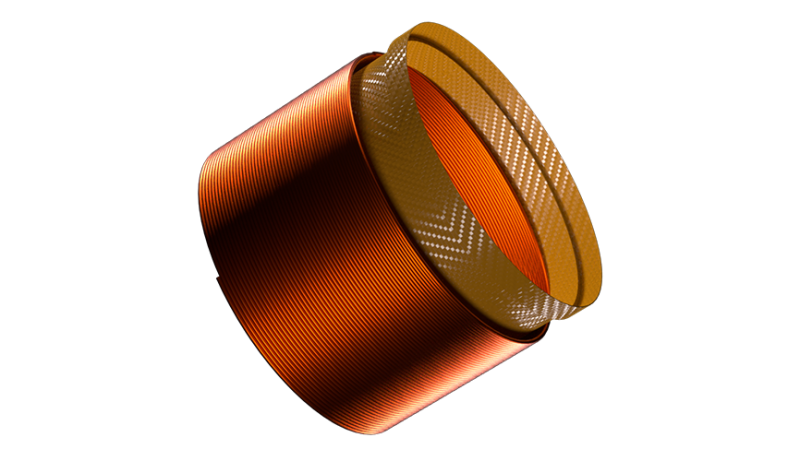

VCCF (Voice Coil Composite Former)
The voice coil former is comprised of a high-performance composite material (polyimide resin glass & epoxy resin glass fiber) rigorously tested to withstand extreme heat. This material has low magnetic susceptibility and is an insulator to prevent inductive effects and eddy currents, resulting in minimal motor distortion.

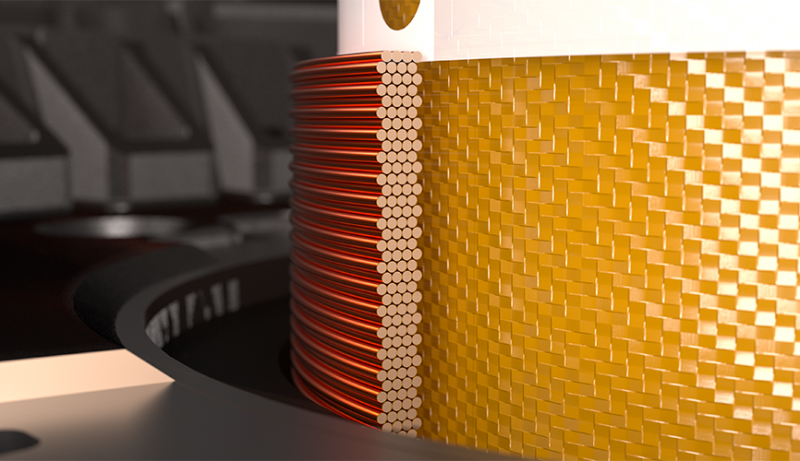

Wet Wound Voice Coil
The Wet Wound Voice Coil technique is used for high temperature applications that – once baked – create a molecular cross-linked bond to eliminate air gaps between the windings. This offers several advantages, for high-power applications, including improved adhesion for durability, enhanced heat dissipation for higher power handling, and higher precision for reliability.

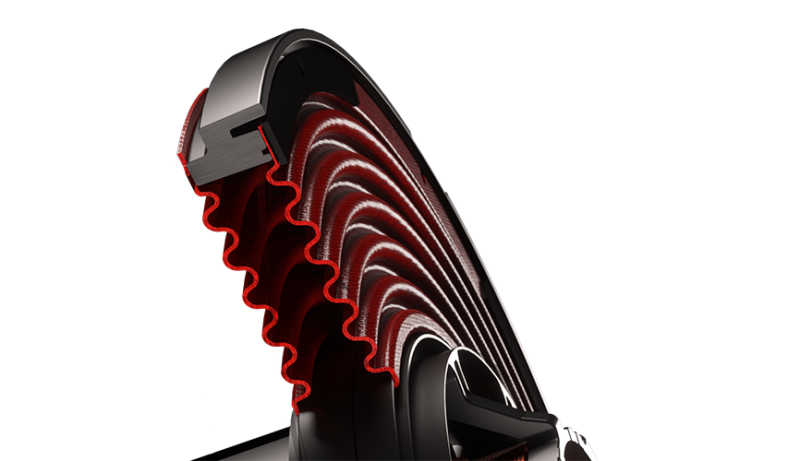

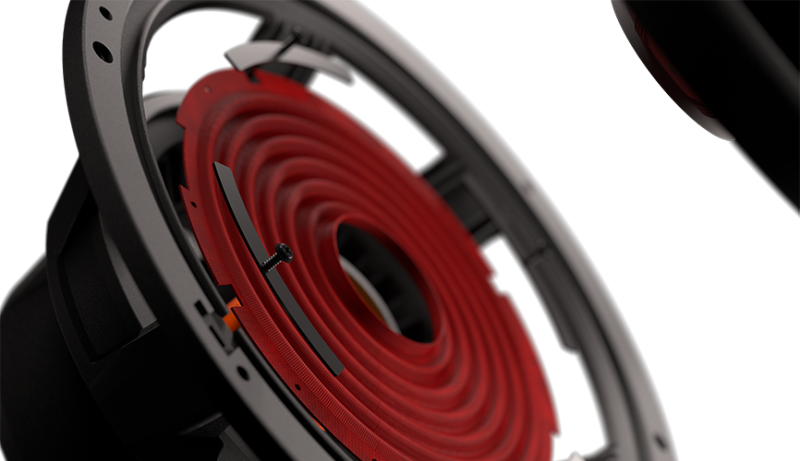

Nanocoated Quad-Clamped Spider
The composite Aramid-Polyester spider features a liquid polymer with nanoparticles applied to the fabric to create a transparent protective layer. This allows the spider to breathe yet prevents water from passing through. It also includes four clamping rings to lock the spider to the landing, preventing it from lifting under high excursion conditions.

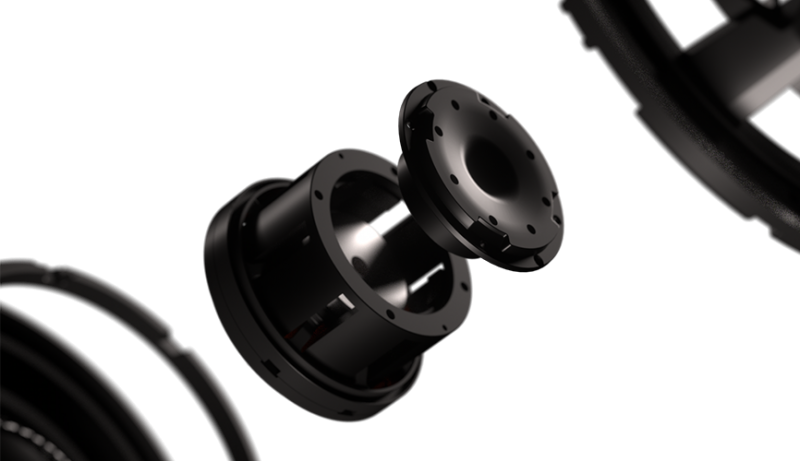

Multi-Vent Pole Piece
The pole piece uses a voice coil direct venting array system to further dissipate heat generated by the voice coil.
True Marine Ecosystem

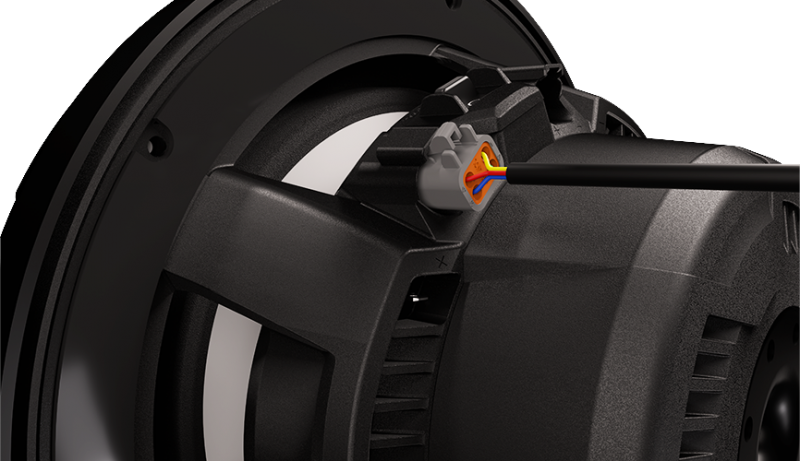

Dual Integrated Deutsch™ and Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Element Ready™ | Subwoofers
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play ...

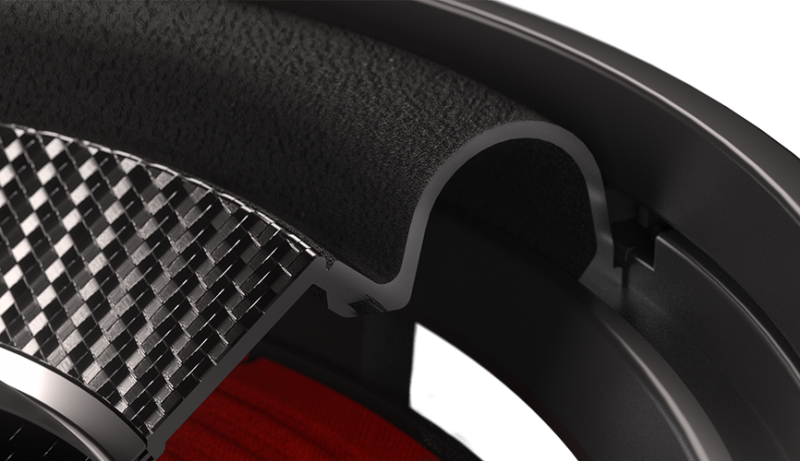

VAST Surround - Subs
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

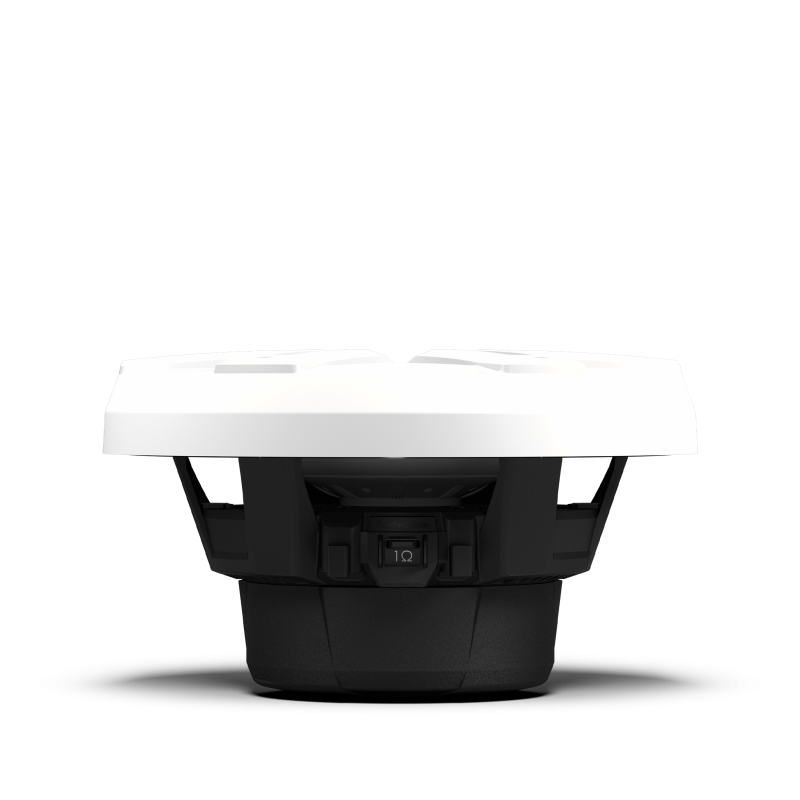

VERSA Switch
Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.
Flex Fit Basket - Marine
The slot mounted frame pattern allows fine-tuning of the marine speaker's mounting position.
Stitched Tinsel Leads
Improved reliability and performance by reducing fatigue and possible shorting.
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible ...
Stainless Hardware
Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections ...
Thermal Shock Resistant
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested ...
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested
ASTM G154 Testing
ASTM G154 500Hr Accelerated UV testing
ISO60068-2-64 Vibration Testing
ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft ...
Grille Customization
With multiple grille options you can dial in your personalized-on water style all to match the ...
| Specifications | |
|---|---|
| Size | 10" |
| Frequency Response | 22 Hz - 250 Hz |
| Voice Coil Type | Dual Voice Coil |
| Nominal Impedance (Ohms) | 2-Ohm or 8-Ohm Switchable |
| Power Handling (Watts RMS) | 400 Watts RMS 1600 Watts PEAK |
| Voice Coil Diameter | 2" (51 mm) |
| Magnet Weight (oz) | 55.04 oz. (1.56 Kg) |
| Fs (Hz) | 30 |
| Re (Ohms) | 6.4 |
| Le (mH) | 4.88 |
| Sd (cm2) | 363 |
| Qms | 7.69 |
| Qes | 0.66 |
| Qts | 0.61 |
| Vas | 25.2 |
| SPL (dB @ 1w/1m) | 83 |
| Xmax (mm) | 13 |
| Speaker Connector | Deutsch™ and 1/8" Spade |
| Sealed Box Volume (Vb) | 0.5 cu. ft. (14.2 Liters) - 1.25 cu. ft. (35.4 Liters) |
| Cutout Diameter | 8.98" (228 mm) |
| Mounting Depth | 4.70" (119.35 mm) |
| Woofer Displacement | 0.047 cu. ft. (1.33 Liters) |
| In The Box | (6) 1025-71213-01: Black Grille Spacer ,(1) 1120-71212-01: Stainless Steel Grill ,(1) 1125-71208-01: 4.5mm x 80mmL Drill Bit ,(6) 1125-71237-01: 3.0mm x 60mmL Hex Screws ,(1) 1125-73494-01: 5.0mm x 40mmL Hex Bit ,(1) 1560-71095-01: 4-Wire RGB Harness 300mm |
| Shipping Weight | 14.45 Lbs. (6.6 Kg) |
