Rockford Fosgate Punch 1,000 Watt 2-Channel Stereo Amplifier - P1000X2

$88999
Or
as low as
$148.33
Per month over
6 months.


In-store

Literature

The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.

Overview

The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • 1 Year Warranty

Technologies

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

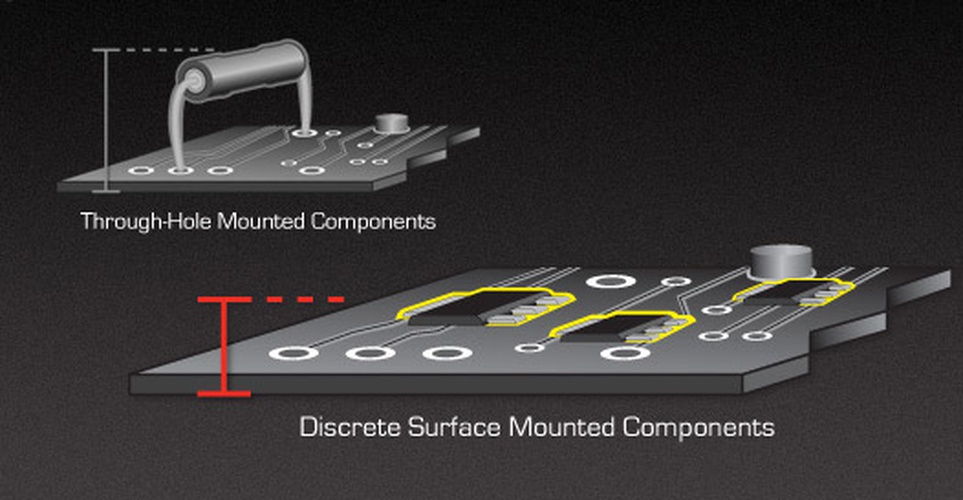

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

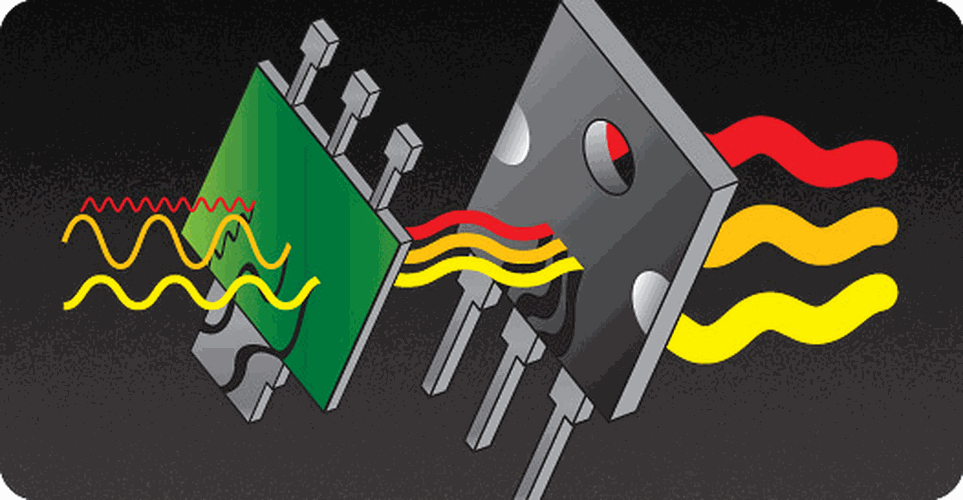

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Operating Voltage9 - 16 VDC
CoolingConvection
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
Power Wire Gauge4 AWG
Power Input ConnectorCaptive C-Clamp
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Remote ControlsOptional Punch Level Control (PLC2) Ready
Crossover ControlsHigh-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Function depends upon LP/AP/HP switch position
Signal OutputLow level: 1 RCA pair
Signal InputHi/Low level: 1 RCA pair
Circuit Topology ClassClass A/B
Efficiency (average)69% @ 4-Ohm
64% @ 2-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Input Sensitivity150 mV - 12 V
Frequency Response20Hz to 20kHz +/- 1.0dB
BridgeableYes
Dynamic Power (PVC/PowerCube®)401 Watts x 2 @ 4-Ohms 0° Res
656 Watts x 2 @ 2-Ohms 0° Res
Rated Power (RMS Continuous Power)300 Watts x 2 @ 4-Ohm
500 Watts x 2 @ 2-Ohm
1000 Watts x 1 @ 4-Ohm Bridged
Total Power (Sum of Rated Power)1000 Watts RMS
Number of Channels2
Recommended Fuse (not included)140 A
Average Current Draw (13.8V Music)70 A
Max. Current Draw (13.8V Sinewave)140 A
Suggested Alternator100 A
Dimensions (H x W x D)2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight15 Lbs. (6.80 Kg.)
