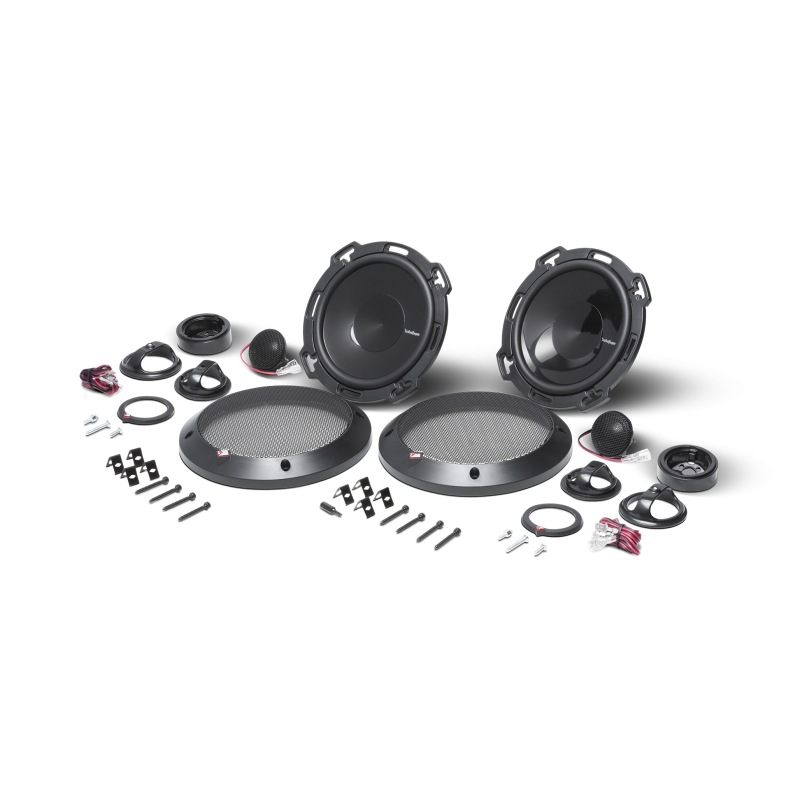

The P16-S is a 6" 2-way component system with 1" soft dome tweeters and is rated at 60 watts RMS. The system includes a pair of tweeters, two woofers with grilles, integrated crossovers, and mounting hardware.
Overview
Car audio fanatics will love the Punch series 6" component system. It features a FlexFit basket for compatibility with various factory speaker mounting locations and a sweet ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.
- FlexFit basket design
- ICC (Integrated Concealed Crossover)
- PEI dome tweeter
- Recessed tweeter mount uses standard 1-3/4" hole saw
- Butyl midrange rubber surround
- Injection molded mineral filled polypropylene cone
- 1 Year Warranty
Technologies
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
DDC™ Tweeter Mounting
Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
FlexFit Basket - Speaker
The slot mounted frame pattern allows for variable adjustments to the mounting position.
| Specifications | |
|---|---|
| Midrange Mounting Depth | 1.93" (49 mm) |
| Tweeter Mounting Depth | 0.50" (13 mm) |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Speaker Type | Component System |
| Crossover | Tweeter crossover built into midrange basket 12dB/octave |
| Sensitivity (dB @ 1W/1M) | 87.2 |
| Shipping Weight | 6.25 Lbs. (2.83 kg.) |
| Midrange Size (Nominal Diameter) | 6" |
| Tweeter Size (Nominal Diameter) | 1.0" (25.4 mm) |
| Frequency Response (Hz) | 60Hz - 22kHz |
| Nominal Impedance (Ohms) | 4-Ohm |
| Power Handling (RMS) | 60 Watts RMS 120 Watts Max |
