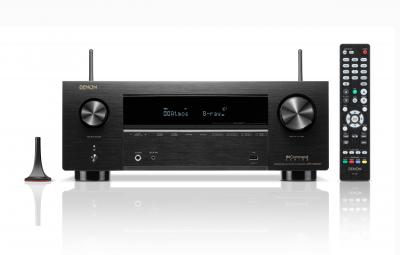

Enjoy incredible 8K video and immersive 3D audio from the AVRX2800H. Fill medium-size rooms with more refined sound from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. And with HEOS® Built-in, wirelessly stream online music and share with HEOS-enabled speakers in other rooms.
Powerful sound
Fill a medium-size room with powerful, more refined sound.
Immersive 3D audio
Feel fully enveloped in your music or movie sound.
Geared for 8K
Enjoy amazing video quality from the latest 8K technology available.
Music streaming throughout your home
With HEOS® Built-in, easily access streaming music and share with HEOS-enabled speakers in other rooms.
High performance discrete 7-channel amplifier
Discrete high-current amplifiers on all channels to deliver up to 95W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive any speaker.
Immersive audio experience
Get immersed in music and movies with Dolby Atmos® and DTS:X® plus Dolby Surround and DTS Neural:X upmixer to optimize legacy content.
Advanced 8K home theater
8K video is supported on three of six HDMI inputs and two outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.
HEOS® Built-in technology
Stream music wirelessly to compatible HEOS-enabled components from a variety of streaming services. Add Denon Home speakers to more rooms and control it all with the HEOS app.
| Network | |
|---|---|
| Pandora | Yes |
| HDMI | |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| Network | |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| HDMI | |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDMI Outputs: Main, Zone | 2, No |
| HDCP2.3 support | Yes |
| HDMI Inputs: Back, Front | 6, No |
| Network | |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet Ports | Yes |
| HDMI | |
| 3D Signal Pass-through | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Auto LipSync | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Multi-room CI | |
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Multi-Room Zones | 2 |
| Remote In / Out | Yes, Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| Others | |
| GUI Languages | 3 |
| Front Display | 1-Line FLD |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT |
| Multi-room CI | |
| HDMI Diagnostics | Yes |
| Others | |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| ECO Mode | Yes |
| Optimized Bass Redirection | Yes |
| Variable Crossover | Yes |
| Sleep Timer | Yes |
| Auto Power Off | Yes |
| Inputs Outputs | |
| Digital In: Optical, Coaxial | 2, 1 |
| Phono (MM) In | Yes |
| Analog In, Out | 4, No |
| Multi-Room Video Out: Video, HDMI | No, No |
| HDMI In, Out | 6, 2 |
| Multi-Room Out: Analog, Digital | 1, No |
| Multichannel Preout | Yes (0.2) |
| Subwoofer Out | 2 |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 7 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | Yes |
| Specifications | |
| Number of Power Amps | 7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 95W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 185W |
| General | |
| System Remote Control | RC-1253 |
| Pre-Programmed, Learnable, LCD Display | No, No, No |
| Power Consumption in W | 500 |
| Power Consumption No-Sound (ECO On / Off) in W | 35W/75W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 13.4 x 6.6, ( 17.1 x 13.4 x 9.3 ), 【 17.1 x 13.0 x 6.6 】 |
| Weight in LBS | 21.0 |
| Weight in LBS (Packaging) | 25.4 |
| Network | |
| SiriusXM* | Yes |
| Roon Tested | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| AirPlay 2 | Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Sound Enhancements | |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Compressed Audio Restorer | Yes |
| Pure Direct | Yes |
| Audyssey | MultEQ XT |
| Discrete Power Amplifier | Yes |
| Multichannel Surround | |
| Max. Number of Processing (Pre-Amp) Channels | 7.1 |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Multichannel Stereo | Yes |
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
