5-CHANNEL AMPLIFIER 4 X 120 WATTS
From our Performance Line, the FPX 5.1200 is a compact 5-channel amplifier, equiupped with an active-crossover feature. With its capacity for high volume, and high power output, the FPX 5.1200 simplifies installation and preserves the integrity of your vehicle's interior
Featuring:
- 4 x 120 Watts under 2 Ohms
- 1 x 720 Watts under 2 Ohms
- Class D amplifier
- 2/4/6 - channel input modes
- Stable under 4 and 2 Ohms
- Active crossover for each pair of channels
- The FPX 5.1200 measures: 337 x 175 x 57 mm
OPTIMAL HEAT DISSIPATION
For an amplifier to provide high power and musicality, efficiency and heat dissipation are two essential qualities. In order to optimize these aspects, FPX amplifiers have been given a thick aluminum chassis. The distribution of the components was also carefully researched to optimize the cooling capacity of the chassis.
The careful selection of each component (switching power supply, oversized toroidal transformers and high-quality capacitors) has made it possible to create powerful but ultra-compact amplifiers offering excellent musicality.
EASY INSTALL
By using Class D technology, Focal has reduced the need for heat dissipation for its FPX range. Focal’s goal is to offer electronics equipment which is very compact and powerful, but without sacrificing musicality. The dimensions of the 5-channel FPX 5.1200 amplifier (337 x 175 x 57mm / 13.25″ x 6.8″ x 2.25″) are nearly the same as the FPX 4.400 SQ. The FPX 5.1200 has a maximum power of 4 x 120 Watt + 1 x 720 Watt at 2 Ohms!

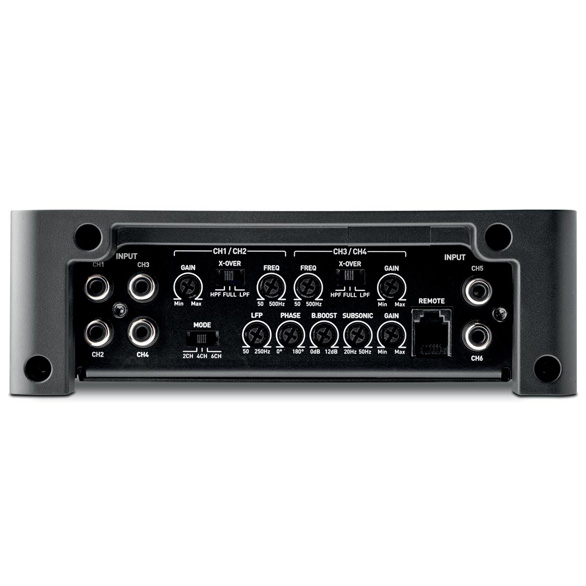

To perfectly tune the subwoofer to the rest of the installation, the bass channel has a low-pass active crossover, a bass equaliser, phase adjustment and a subsonic filter (particularly useful for cutting off frequencies which are too low for a small subwoofer).
Stable at 4 and 2 Ohms, this new FPX amplifier will drive most speaker drivers on the market with just the right amount of power: 4 x 75 Watts + 1 x 420 Watts RMS at 4 Ohms (CEA standard).
WHAT MAKES THE DIFFERENCE
- Only one amplifier for the entire hi-fi installation
- Easier to integrate and install
- Compact design
- Substantial power and great musicality
- Extremely versatile
- A dedicated subwoofer channel (+ remote control)
| Audio Specifications | |
|---|---|
| CEA power (4 ohms) | 4 x 75 Wrms + 1 x 420 Wrms |
| Max. power (2 ohms) | 4 x 120 Wrms + 1 x 720 Wrms |
| Power max (channels 1 to 4 bridged at 4 ohms) + channel 5 at 2 ohms | 2 x 240 Wrms + 1 x 720 Wrms |
| Bandwidth (-3dB) | 10 Hz - 20 kHz |
| THD | 0,03% |
| SNR (1W/A) | > 75 dB |
| General Features | |
| Subsonic filter | 10Hz-50Hz (24dB/oct) |
| High-pass/low-pass filter | 50 Hz – 500 Hz |
| Bass boost | 0 to 12 dB linear |
| Phase | 0 to 180° linear |
| Full-range function | Yes |
| Mirror mode | Yes |
| Standby current (A) | 1,7 |
| Protections | Short circuit/low impedance/reverse polarity/ DC/voltage drop/overheat protection |
| Dimensions (LxWxH) | 1317/64" x 657/64" x 21/4" (337 x 175 x 57 mm) |
| Weight (kg) | 9lbs (4.1kg |
