- 500 Watt High Efficiency Class D Design
- 1-OHM Stable Mono Block Amplifier
- MOSFET Power Supply
- High Level (Speaker)/Low Level (RCA) Input
- Remote Soft Delay Turn On/Off Circuit
- Variable Low Pass Electronic Crossover
- Selectable 12dB Bass Boost EQ
- Variable Gain Control
- Remote Level Control Port (for optional PB-GAIN1 controller)
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

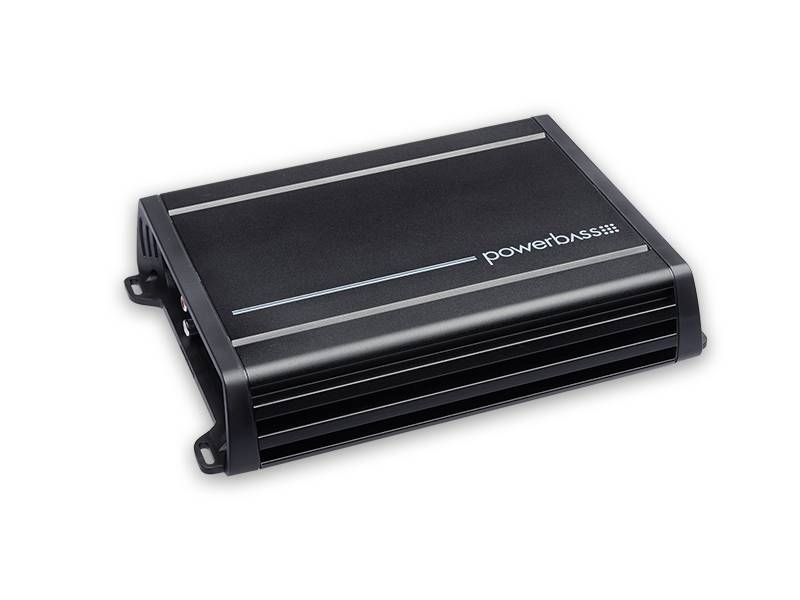

ACS-500D 500W RMS @ 1Ω MONOBLOCK CLASS D COMPACT AMPLIFIER
PowerBass is pleased to introduce our newest series of Class A/B full range and Class D bass amplifiers. Borrowing from our classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling.
The result a line-up of two, four and mono channel models that offer great performance and fantastic value. Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. If you are seeking the perfect mix of performance and value look no further.
| Specifications | |
|---|---|
| S/N Ratio: | >90 dB |
| Input Sensitivity: | 0.25 - 6.0 Volts |
| Dimensions (in Inches): | 9.7" x 7.1" x 2.0" |
| Crossover Slope: | 12 dB |
| Peak Power: | 1000 watts |
| High-Pass Crossover Freq: | n/a |
| Low-Pass Crossover Freq: | Variable 30 Hz - 250 Hz |
| Variable Subwoofer EQ: | Switchable 0/+12 dB |
| Subwoofer EQ Frequency: | 45 Hz |
| Switchable Subwoofer EQ: | 0 / +12 dB @ 45 Hz |
| Depth: | 9.7" |
| Width: | 7.1" |
| Height: | 2.0" |
| Power Supply: | Unregulated PWM |
| Subwoofer Frequency Range: | 10 Hz - 250 Hz |
| Equalization Boost/Cut: | Switchable 0/12 dB @ 45Hz |
| Inputs: | RCA, 1 Pair Input, 1 Pair Speaker Level Input |
| Variable Subsonic Freq: | Variable 15 Hz - 50 Hz |
| Total Harmonic Distortion: | 0.5% at Rated Power |
| Strapped Output Power @ 2ohms: | N/A |
| Output Power (14.4 V) @ 4 ohm: | 200 watt x 1 |
| Output Power (14.4 V) @ 2 ohm: | 300 watt x 1 |
| Output Power (14.4 V) @ 1 ohm: | 500 watt x 1 |
| Channels (mono): | 1 |
| Frequency Response: | 10 Hz - 250 Hz |
