The M2D2-10I Color Optix™ 10” DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides customization by including a stainless-steel grille insert for a white with stainless grille design. The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. ColorOptix™ Speakers Product Overview
Overview
The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle isolates any interaction between the front and rear wavelengths to prevent cancellation.
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Vented motor design with water-repelling nano coated mesh screen
- 100% UV Stable Centrex plastic grill
- Linear Aramid-Polyester Composite Spider
- Fully insulated silicone tinsel leads
- Injection molded UV stable foam surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Co-molded surround and mineral filled polypropylene cone body
- Optically clear UV stable RGB Lighting Encapsulation
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- VERSA switch allows series or parallel wiring with flip of switch without additional wiring
- Optimized for infinite baffle installations
- 2-Year Warranty
Technologies
Element Ready™ - Subwoofers
These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
ASTM B117 Testing
ASTM B117 500Hr Salt/Fog Testing Standards
ASTM G154 Testing
ASTM G154 500Hr Accelerated UV testing
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
ISO60068-2-64 Testing
ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.
VAST Surround - Marine
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

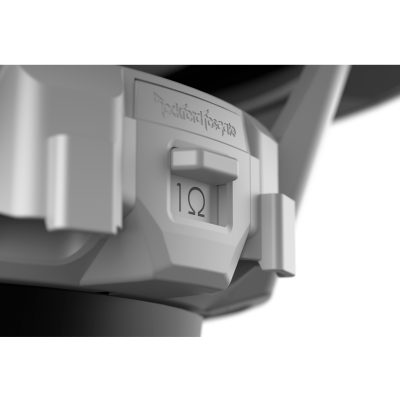

VERSA Switch
Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.
Specifications | |
---|---|
Size | 10" |
Nominal Impedance (Ohms) | 1-Ohm or 4-Ohm Switchable |
Power Handling (Watts RMS) | 400 Watts RMS 1600 Watts PEAK |
Voice Coil Diameter | 2.0" (50.8 mm) |
Magnet Weight (oz) | 55.02 oz. (1.56 Kg) |
Frequency Response | 20 Hz - 750 Hz |
Fs (Hz) | 43 |
Re (Ohms) | 3.3 |
Le (mH) | 1.17 |
Qms | 5.69 |
Sd (cm2) | 363 |
Qes | 0.86 |
Qts | 0.74 |
Vas | 30.5 |
SPL (dB @ 1w/1m) | 90.3 |
Xmax (mm) | 11.0 |
Woofer Displacement | 4.20 (0.15 Liters) |
Speaker Connector | Deutsch™ |
Cutout Diameter | 8.87" (225.3 mm) |
Mounting Depth | 4.44" (112.7 mm) |
Shipping Weight | 11.9 Lbs. (5.26 Kg) |
