Rockford Fosgate 10 Inch M2 DVC 4Ω Color Optix Sealed Enclosure Marine Subwoofer - M2D4-10SB

$74999
Or
as low as
$125.00
Per month over
6 months.


In-store

Literature

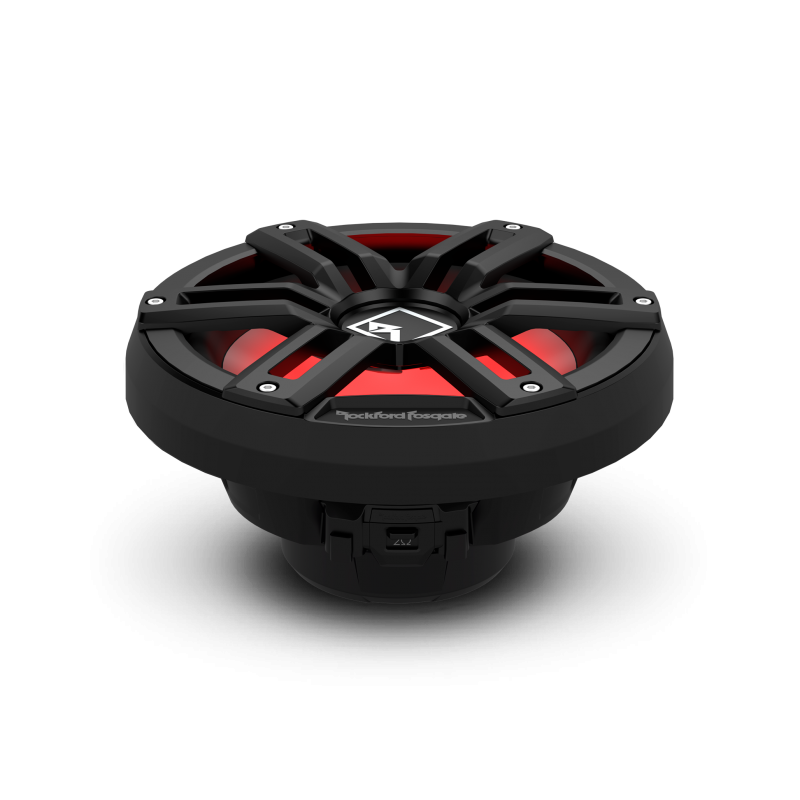

The M2D2-10S is a 10” DVC 4-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.

Thanks! You're on the list!

Overview

The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.

  • Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof

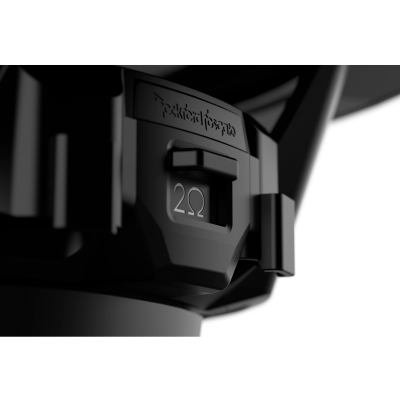

  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • Element Ready™ design protects against outdoor exposure
  • Optimized for small sealed enclosures when there is very little space for an enclosure
  • IPX6 Marine Grade for prevention of water intrusion
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Deutsch™ connector front/rear silicone seal protects against water ingress
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Gold plated Marine grade brass terminals provide a corrosion resistant connection
  • 2-piece grille allows for interchangeable stainless-steel or "sport" option
  • Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
  • Klippel Verified certification program delivers the best possible loudspeakers
  • 2-Year Warranty

Technologies

These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.

Water projected in powerful jets from any direction shall have no harmful effects.

ASTM B117 500Hr Salt/Fog Testing Standards

ASTM G154 500Hr Accelerated UV testing

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.

Specifications
Size10"
Nominal Impedance (Ohms)2-Ohm or 8-Ohm Switchable
Power Handling (Watts RMS)400 Watts
Voice Coil Diameter1.95" (49.53 mm)
Voice Coil TypeDual Voice Coil
Magnet Weight (oz)32.9 oz. (0.9 Kg)
Fs (Hz)28
Re (Ohms)6.5
Le (mH)3.43
Sd (cm2)363
Qms5.18
Sealed Box Volume (Vb)0.5 cu. ft. (14 Liters)
Qes1.07
Qts0.89
Vas38.2
SPL (dB @ 1w/1m)86
Xmax (mm)12.0
Woofer Displacement0.07 cu. ft. (2.03 Liters)
Speaker ConnectorDeutsch™ and 1/8" Spade
Cutout Diameter8.87 in. (225.3 mm)
Mounting Depth4.24 in. (107.7 mm)
Shipping Weight8.5 Lbs. (3.85 Kg)
