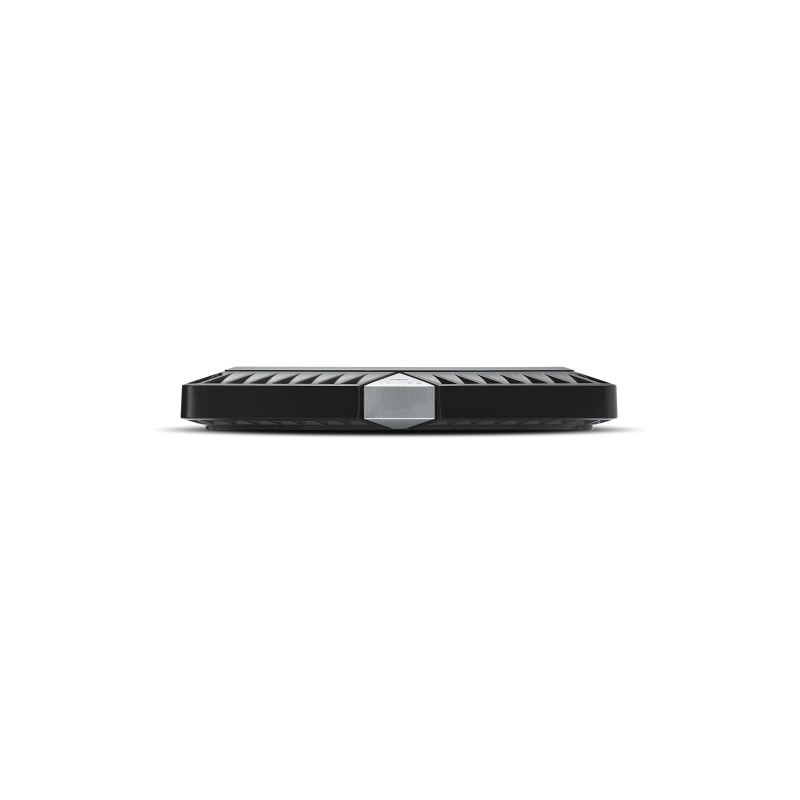

The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
Overview
The T600-4 amplifier offers the perfect balance of power output and compact design required for high performance audio systems. The 4-channel configuration allows fine tuning adjustments between front stage component systems and rear surround speakers. The built-in crossover also allows the rear channels to be configured for running one or two subwoofers.
- 24dB/octave crossover
- 2/4 channel input switch
- MOSFET power supply
- MOSFET output stage
- 4 Gauge power/ground connectors
- Audiophile grade speaker connections
- RCA pass-thru outputs
- 2-Year Warranty
Technologies
DTM
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
Punch EQ2
Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
TO-247 MOSFETs
(left-OLD | right-NEW) Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
| Specifications | |
|---|---|
| Speaker Output Connector | Screw terminal barrier strip |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Remote Controls | Optional Remote Punch EQ (overrides rear channel built-in Punch EQ) |
| Visual Indicators | Power Thermal Protect |
| Power Wire Gauge | 4 AWG |
| Crossover Controls | Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth |
| Tone Controls | Front Channels - Punch EQ Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Rear Channels - Punch EQ Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz |
| Signal Input | Front Low level: 1 RCA pair Rear Low level: 1 RCA pair Input Switch: 2CH / 4CH |
| Signal Output | Low Level: 1 RCA pair |
| Efficiency (average) | 70% @ 4-Ohm 64% @ 2-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Input Sensitivity | 150 mV to 4 V |
| Circuit Topology Class | Class A/B |
| Frequency Response | 20Hz to 20kHz +/- 1dB |
| Bridgeable | Yes |
| Dynamic Power (PVC/PowerCube®) | Front Channels 139 Watts x 2 @ 4-Ohms 0° Res 236 Watts x 2 @ 2-Ohms 0° Res Rear Channels 140 Watts x 2 @ 4-Ohms 0° Res 236 Watts x 2 @ 2-Ohms 0° Res |
| Rated Power (RMS Continuous Power) | 100 Watts x 4 @ 4-Ohm 150 Watts x 4 @ 2-Ohm 300 Watts x 2 @ 4-Ohm Bridged 2-Ohm x 2 Bridged Stable |
| Total Power (Sum of Rated Power) | 600 Watts RMS |
| Number of Channels | 4 |
| Cooling | Convection |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 80 A |
| Average Current Draw (13.8V Music) | 40 A |
| Max. Current Draw (13.8V Sinewave) | 80 A |
| Suggested Alternator | 75 A |
| Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm) |
| Shipping Weight | 12.00 Lbs. (5.44 Kg.) |
