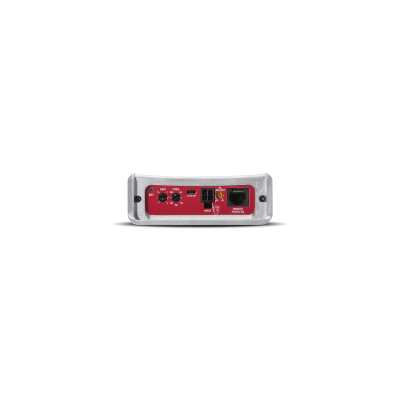

The PBR300X2 is a 300 Watt amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This amp is great for smaller stealth installations, motorcycles and recreational vehicles.
Overview
The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. It is great for smaller stealth installations, as well as for motorcycles and recreational vehicles.
- Variable 4-6 volt hi level DC offset voltage input turn-on control
- Ultra compact chassis
- High level inputs
- MOSFET output stage
- 12dB/octave Butterworth crossover
- 1 Year Warranty
Technologies
Punch EQ2
Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
Class BR
Stores energy and dynamically boosts rail voltage to create power on demand.

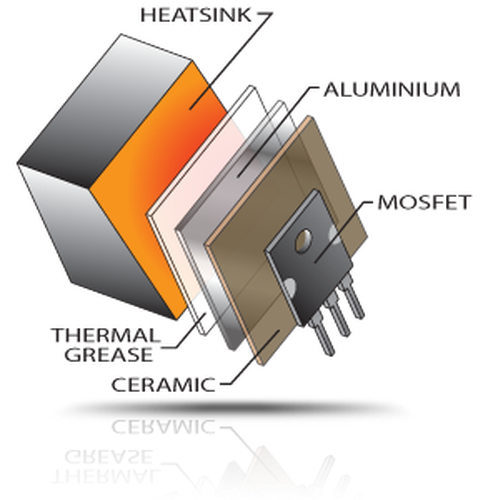

MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
Specifications | |
---|---|
Number of Channels | 2 |
Total Power (Sum of Rated Power) | 300 Watts |
Rated Power (RMS Continuous Power) | 100 Watts x 2 @ 4-Ohm 150 Watts x 2 @ 2-Ohm 300 Watts x 1 @ 4-Ohm Bridged |
Dynamic Power (PVC/PowerCube®) | 114 Watts x 2 @ 4-Ohm 160 Watts x 2 @ 2-Ohm 387 Watts x 1 @ 4-Ohm Bridged |
Bridgeable | Yes |
Frequency Response | 20Hz - 20kHz +/-3dB |
Input Sensitivity | 150 mV - 11 V |
Circuit Topology Class | Class BR |
Efficiency (average) | 68% @ 4-Ohm |
Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
Signal Input | High/Low Level Input: 4-Pin harness Hi-Level Sensitivity: Variable DC offset sensitivity |
Signal Output | - |
Tone Controls | Optional Remote Punch EQ |
Crossover Controls | High-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth All-Pass: Yes |
Remote Controls | Optional PEQ provides 0dB to +18dB @ 45Hz |
Visual Indicators | Power/Protect, BRT (Boost) |
Power Wire Gauge | 10 AWG |
Power Input Connector | Detachable Compression Terminal |
Speaker Wire Gauge | 16 AWG |
Speaker Output Connector | 4-Pin Harness |
Cooling | Convection |
Operating Voltage | 9 - 16 VDC |
Recommended Fuse (not included) | 50 A |
Average Current Draw (13.8V Music) | 23 A |
Max. Current Draw (13.8V Sinewave) | 45 A |
Suggested Alternator | 75 A |
Dimensions (H x W x D) | 1.53 x 4.25 x 6.75 (in.) 3.90 x 10.8 x 17.2 (cm) |
Shipping Weight | 2.8 Lbs. (1.27 Kg.) |
