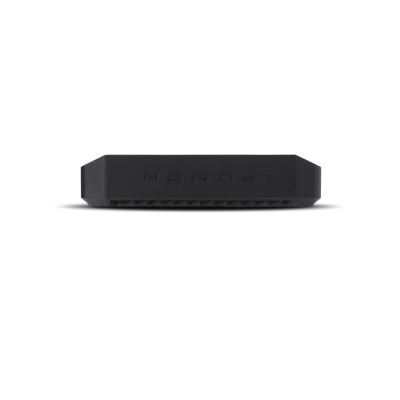

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Infrasonic filter
- 1 Year Warranty
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
|Speaker Output Connector||Captive C-Clamp|
|Power Input Connector||Captive C-Clamp|
|Speaker Wire Gauge||8 AWG to 18 AWG|
|Power Wire Gauge||4 AWG|
|Visual Indicators||Power/Protect/Thermal LED |
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
|Remote Controls||Optional Punch Level Control (PLC2) Ready|
|Crossover Controls||Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth |
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No
|Signal Output||Low level: 1 RCA pair|
|Tone Controls||Punch EQ2 Bass: 0dB to +18dB @ 45Hz|
|Signal Input||Hi/Low level: 1 RCA pair|
|Circuit Topology Class||Class BD|
|Efficiency (average)||86% @ 4-Ohm|
|Total Harmonic Distortion (THD+Noise)||4-Ohm: <1.0% |
|Input Sensitivity||150 mV - 12 V|
|Frequency Response||20Hz to 250Hz +/- 1.0dB|
|Dynamic Power (PVC/PowerCube®)||224 Watts x 1 @ 4-Ohm |
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm
|Rated Power (RMS Continuous Power)||150 Watts x 1 @ 4-Ohm |
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
|Total Power (Sum of Rated Power)||500 Watts|
|Number of Channels||1|
|Operating Voltage||9 - 16 VDC|
|Recommended Fuse (not included)||80 A|
|Average Current Draw (13.8V Music)||35 A|
|Max. Current Draw (13.8V Sinewave)||70 A|
|Suggested Alternator||75 A|
|Dimensions (H x W x D)||2.38 x 7.76 x 11.03 (in) |
6.05 x 19.71 x 28.02 (cm)
|Shipping Weight||10.8 Lbs. (4.89 Kg.)|
