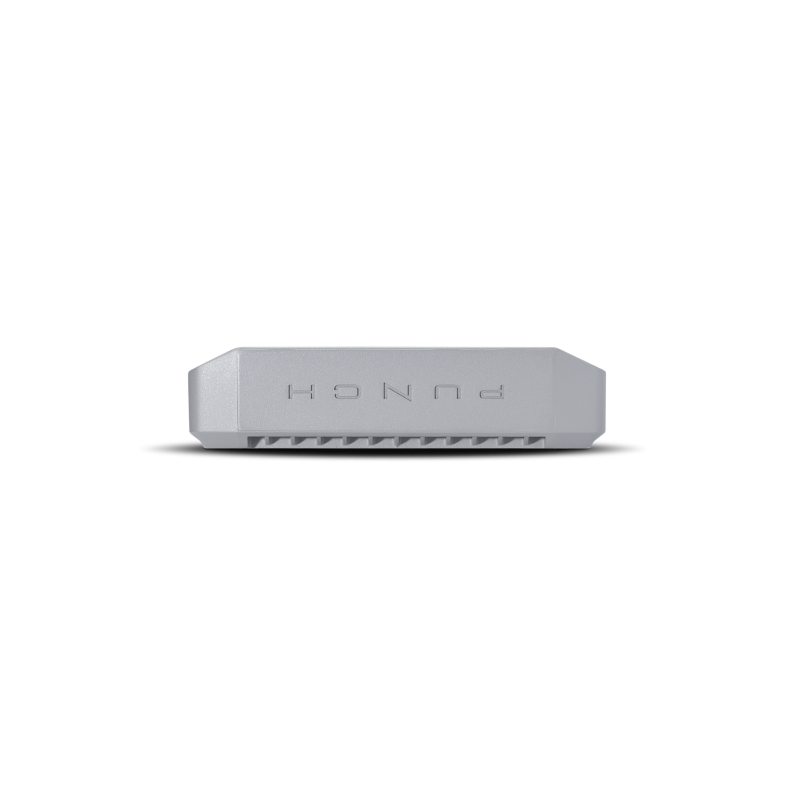

Rockford Fosgate Punch Marine 300 Watt 2-Channel Amplifier - PM300X2
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

In-store

Literature

The PM300X2 is a 300 Watt 2-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.

Overview

The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • 2-Year Warranty

Technologies

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Element Ready™ - Amps

These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Recommended Fuse (not included)50 A
Operating Voltage9 - 16 VDC
Suggested Alternator75 A
Input Sensitivity150 mV - 12 V
BridgeableYes
Crossover ControlsHigh-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Signal InputHi/Low Level: 1 RCA Pair
Signal OutputLow Level: 1 RCA Pair
Power Input ConnectorCaptive C-Clamp
Speaker Output ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
CoolingConvection
Remote ControlsOptional Punch Level Control (PLC2) Ready
Dimensions (H x W x D)2.38 x 7.76 x 9.86 (in)
6.05 x 19.71 x 25.04 (cm)
Dynamic Power (PVC/PowerCube®)120 Watts x 2 @ 4-Ohms 0° Res
203 Watts x 2 @ 2-Ohms 0° Res
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Max. Current Draw (13.8V Sinewave)45 A
Rated Power (RMS Continuous Power)100 Watts x 2 @ 4-Ohm
150 Watts x 2 @ 2-Ohm
300 Watts x 1 @ 4-Ohm Bridged
Number of Channels2
Total Power (Sum of Rated Power)300 Watts
Tone Controls0dB to +14dB @ 12.5kHz
0dB to +18dB @ 45Hz
Power Wire Gauge8 AWG to 4 AWG
Heat Sink TypeDie Cast Aluminum
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Circuit Topology ClassClass A/B
Frequency Response20Hz-20kHz
Shipping Weight9.5 Lbs. (4.3 Kg.)
Efficiency (average)69% @ 4-Ohm
Average Current Draw (13.8V Music)23 A
