Kenwood 6.95 Inch Digital Multimedia Receiver with Built-in Bluetooth and WiFi - DMX9708S

$84800
Save $10100
Or
as low as
$141.33
Per month over
6 months.


  • Delivery
    Pick Up
    You have selected the option to deliver this product.

    At this point of time, online shopping is available only in British Columbia.

    Add to cart
    Enter the postal code
Available to order

Literature
  • 6.95" WVGA Monitor with Capacitive Touch Panel
  • Android Auto™ & Android Auto™ Wireless
  • Wired and Wireless Apple CarPlay
  • High-Resolution Audio
  • Wireless Mirroring for Android
  • USB Type-C
  • 13 Band EQ & Digital Time Alignment
  • 4 Camera Inputs
  • 3 Preouts 4.0V

Features

Capacitive Touch Panel

Clear glass display with swipe functionality that provides superior picture and touch panel control.

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.



Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.



4 Camera Inputs

Optional camera connection method for up to 4 cameras in various configurations.

USB Type-C

USB Type-C cable and USB Type-A adapter are included to the set.

Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A



Parking Guidelines

Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.



Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Short Chassis

With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



Smartphone Connectivity



Safe, Smart and Comprehensive Control with Apple CarPlay

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).



Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).

- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.



Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.



HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.



Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.



Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



Control the Receiver from Your Smartphone with the KENWOOD Remote App S

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).



KENWOOD Portal App

Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.



The Best Audio Experience



Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24Bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.



Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.



Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.



Safe Driving

ENHANCED VEHICLE INTEGRATION

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, this model feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).



Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

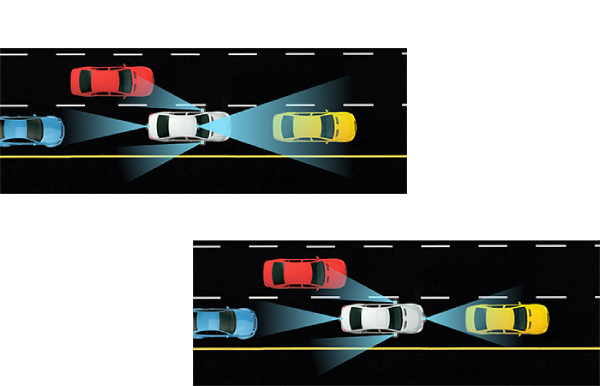

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

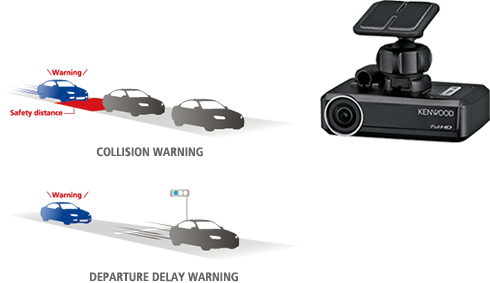

Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.



Additional Features



Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.



Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.



USB Type-C

USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A



SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.(Optional SiriusXM tuner required, sold separately)



Short Chassis Design

Less than 3.5"(85mm) of depth for more flexible installation



Remote Control (Optional)

This receiver can be operated using the optional remote control KCA-RCDV340.


Audio
Speaker Impedance ()4-8 Ohms
General
Operating voltage12V DC Car Battery
(Main Unit Installation size)178mm x 100mm x 85mm
(with Sleeve)182mm x 112mm x 85mm
(Main Unit Installation size)7 x 3-15/16 x 3-3/8 inch
Audio
Preout level (V)4V / 10kOhms
Preout impedance ()=< 300 Ohms
Output frequency band20 - 88,000Hz
Typical Power Output (Front&Rear)22Wx4
Typical Power Output (Front&Rear)(at less than 1%THD)
Typical Power Output (Front&Rear)Full Bandwidth Power
Wi-Fi
ChannelsAuto(149,153,157,161ch)
Transfer rates (MAX)11a: 54 Mbps / 11b: 11 Mbps /
Transfer rates (MAX)11g: 54 Mbps / 11n: 300 Mbps /
Transfer rates (MAX)11ac: 867 Mbps
BluetoothSection
TechnologyBluetooth Ver5.0
Frequency2.402 - 2.480 GHz
Maximum Communication rangeLine of sight approx.10m(32.8ft)
Audio CodecSBC / AAC
Multi Profile SupportMulti Profile
ProfileHFP (V1.7) (Hands Free Profile)
ProfileSPP (Serial Port Profile)
ProfileA2DP (Advanced Audio Distribution Profile)
ProfileAVRCP (V1.6) (Audio/Video Remote Control Profile)
ProfilePBAP (Phonebook Access Profile)
HDMI
Connector TypeType-D
Input ResolutionVGA (640x480p 59.94Hz/60Hz)
Input Resolution480p (720x480p 59.94Hz/60Hz)
Input Resolution720p(1280x720p 59.94Hz/60Hz)
Input Audio Type32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
BAND
BAND13Band
frequency (Hz) (BAND1-13)
frequency (Hz) (BAND1-13)62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain
Gain-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
High Pass Filter Frequency
HIGH PASS FILTER frequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE
SLOPE-6/-12/-18/-24[dB/Oct.]
Low Pass Filter Frequency
LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE
SLOPE-6/-12/-18/-24[dB/Oct.]
Front / Rear /Subwoofer Delay
Front / Rear /Subwoofer Delay0 - 20.01ft (0.03or0.04ft Step)
Gain
Gain-8 to 0dB
Subwoofer Level
Subwoofer Level-50 to 10dB
FM
Frequency Range87.9MHz - 107.9MHz
(Frequency step)(200kHz)
Usable sensitivity9.3dBf
S/N 30dB0.8V/75
Quieting sensitivity10.2dBf
DIN S/N 46dB1.13V / 75Ohms
Frequency response30Hz - 15kHz
S/N(dB)65dB (MONO)
SelectivityOver 80dB (
Stereo separation45dB (1kHz)
Frequency Range530kHz - 1700kHz
(Frequency step)
(Frequency step)(10kHz)
Usable sensitivity
Usable sensitivity28dB
Video
Color system of external video inputNTSC/PAL
External audio max input level (Mini jacks)2 V / 25 kOhms
Video Input level (RCA jacks)1 Vp-p / 75 Ohms
Video Output level (RCA jacks)1 Vp-p / 75 Ohms
Audio
Maximum Power Output (Front&Rear)50Wx4
Wi-Fi
ChannelsAuto(1-11ch)
Frequency RangeDual Band ( 2.4GHz / 5GHz )
IEEE Standard802.11 a/b/g/n/ac
Wireless MirroringSection
Touch ControlUIBC
Copyright protectionHDCP2.2
ModeSink
USB I/FSection
Dynamic range89dB
Signal to Noise ratio98.5dB
Total harmonic distortion 1kHz0.010%
44.1k Sampling20 - 20,000 Hz
48k Sampling20 - 22,000 Hz
96k Sampling20 - 44,000 Hz
Frequency response192k Sampling20 - 88,000 Hz
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
D/A Converter24/32Bit
Maximum Power Supply CurrentDC5V=3.0A
File SystemFAT 16/32, exFAT, NTFS
USB StandardUSB2.0 High Speed
Connector TypeType-C
MonitorSection
Back lightingLED
Pixel arrangementRGB striped arrangement
Effective pixels99.99%
Number of pixels1,152,000
Number of pixels800H x 480V x RGB
Drive systemTFT active matrix system
Display systemTN LCD panel
W x H156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
Picture size6.95 inches(diagonal) wide
General
Weight Main unit(Sleeve included)
(with Sleeve)7-3/16 x 4-7/16 x 3-3/8 inch
Weight Main unit1.5 kg
Weight Main unit3.2 lb
