Rockford Fosgate Power 750 Watt Class-bd Mono Amplifier - T750X1BD
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$829.99 CAD Save $140.00

Or as low as $138.33/month over 6 months. Apply Now


Available to order

Literature

The Power T750X1bd is an ultra-compact, Class bd 750 Watt mono amplifier. It features high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

Overview

The Power T750X1bd 750 Watt mono, ultra-compact amplifier is built on Rockford Fosgate’s patented Class bd technology platform. This design creates a highly efficient design that reduces the electrical impact on the vehicles charging system by using the efficient Class D technology while maintaining fidelity combining it with Class b topology. Flexible vehicle integration is achieved via a configurable input harness with Molex style connectivity that accepts both RCA and speaker level signals while our differential input circuitry eliminates signal noise from entering the amplifier resulting in a clean audio signal. When using speaker level input signals, the amplifier also has integrated auto turn-on capabilities and converts its remote input terminal to an output that can be used to turn-on additional amplifiers. This can eliminate the need of sourcing a separate remote turn-on signal for the amplifier from the vehicle. Top mounted controls allow easy access to the built-in low pass crossover, patented Punch EQ boost circuit and our patented C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while our real-time thermal/protection schemes safeguard the amplifier in the event of overheating or short circuit conditions. The unit is also compatible with our Punch PLC2 remote level controller and is ideal for those installations where you need a compact amplifier that can produce high output power.

  • Class BD
  • Rockford Fosgate proprietary low impedance Constant Power
  • Differential inputs with high level auto turn-on feature
  • Upgraded RCA connectors
  • 8 AWG Power/Ground connector. 10 AWG speaker connector
  • Remote-Out feature when using high level inputs
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing with Rollback technology
  • Dual extruded heat sinks
  • All other normal Rockford protection schemes
  • CEA-2006 and CE compliant
  • Discrete surface mount technology
  • 2-Year Warranty

Technologies

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

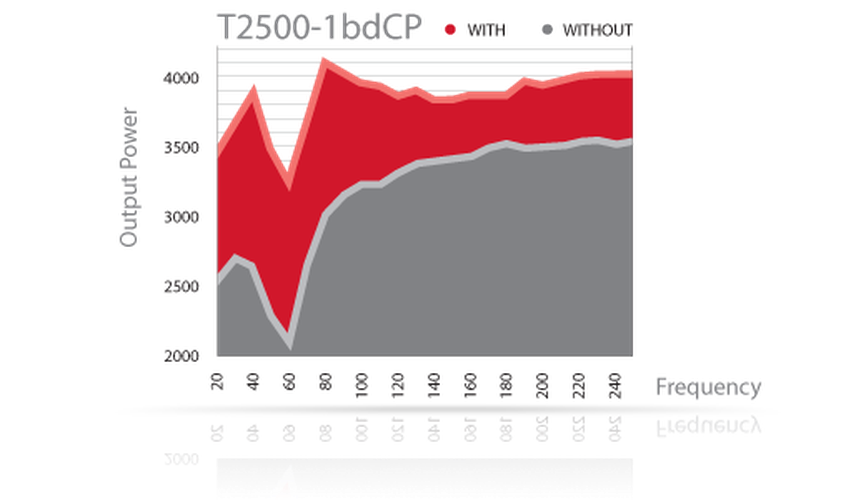

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

3-Stage Airflow

3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications
Speaker Output ConnectorDetachable Compression Terminal
Power Input ConnectorDetachable Compression Terminal
Speaker Wire Gauge10 AWG
Power Wire Gauge8 AWG
Visual IndicatorsPower: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Remote ControlsOptional PLC2 provides Punch Level Control
Crossover ControlsLow-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Infrasonic: 28Hz @ 12dB/Octave Butterworth
Tone ControlsBass: 0 to +18 dB @ 45 Hz
Signal InputHigh/Low Level Input: 4-Pin harness
Signal Output
Circuit Topology ClassClass BD
Efficiency (average)>85%
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0% above 35 Hz
Input Sensitivity150 mV to 12 V
Frequency Response20Hz - 230Hz +/-1dB
BridgeableNo
Dynamic Power (PVC/PowerCube®)538 Watts x 1 @ 4-Ohm
909 Watts x 1 @ 2-Ohm
990 Watts x 1 @ 1-Ohm
Rated Power (RMS Continuous Power)500 Watts x 1 @ 4-Ohm
750 Watts x 1 @ 2-Ohm
750 Watts x 1 @ 1-Ohm
Total Power (Sum of Rated Power)750 Watts
Number of Channels1
CoolingDual Fan Cooled
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)100 A
Dimensional Diagram
Dimensions (H x W x D)1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight3.44 Lbs. (1.56 Kg.)
